Part Scanner

  • Updated

The part scanner allows you to count inventory by scanning barcodes. You may enter a bin location and part quantity, then scan parts using your device. You can then upload the file of barcodes, bins and quantities on your computer to update a physical inventory count.

This is accessible for both computers (with a camera) and mobile devices.

Scan Barcodes

Upload Scan to Physical Inventory Count

Scan Barcodes

  1. Open the MotilityAnywhere URL on your mobile device.

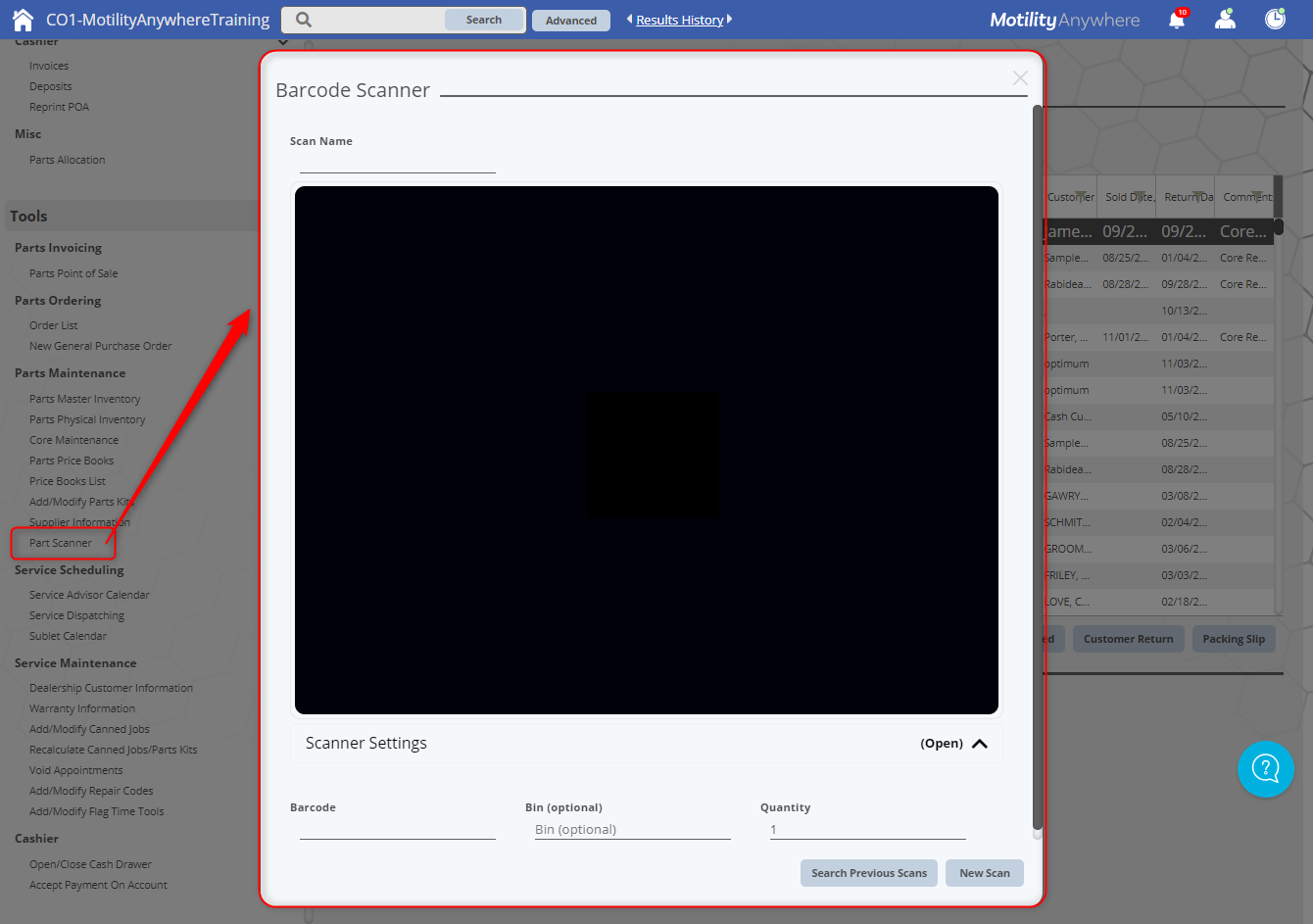

  2. Locate and click over the Part Scanner under the Parts and Service section. This will open the parts scanner window.


  1. Enter a Scan Name.
  2. Click the New Scan button in the lower right.
  3. Optionally, you can enter the bin location where the part is located.
  4. Enter the quantity of the part.

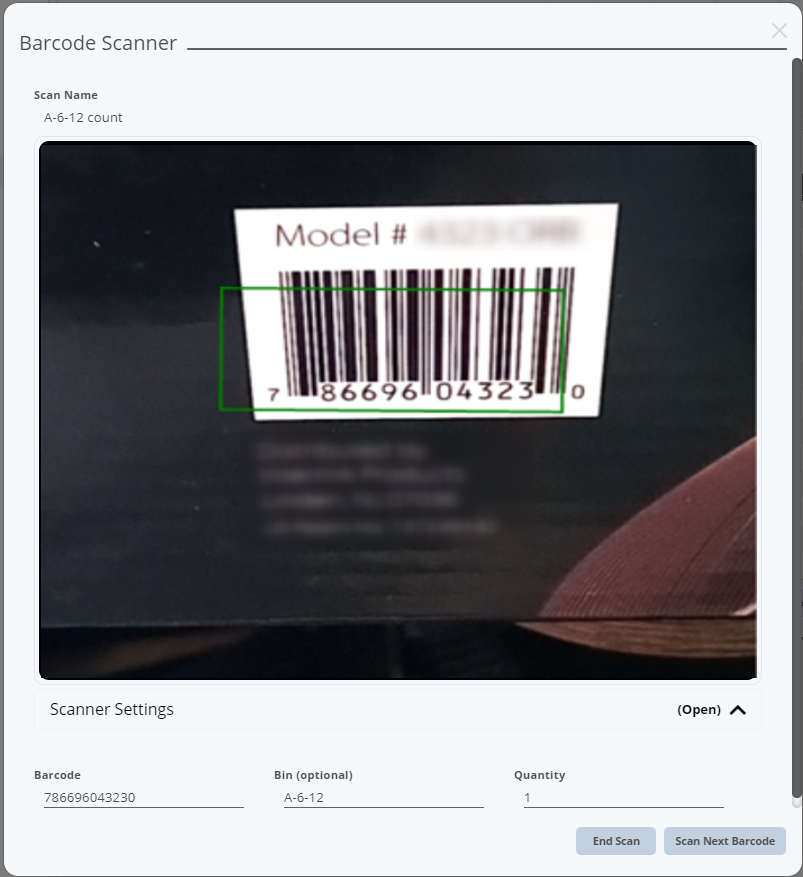

  5. Align the barcode you wish to scan with your device's camera. The barcode will scan and be shown in the Barcode field.
  6. Click the Scan Next Barcode button.
IMPORTANT: If your device has automatically blocked site access to your device's camera, you will need to allow the site to access your camera to be able to scan barcode labels.




  1. To scan the next part's barcode, verify the bin location.
  2. Enter the part quantity.
  3. Align the barcode you wish to scan with your device's camera. The barcode will scan and be shown in the Barcode field.
  4. Continue to add parts to the scan by repeating steps 9-11.
  5. When you have finished scanning the parts, select the End Scan button in the lower right. This will save the scanned barcode file.

Upload Scan to Physical Inventory Count

Note: The security permission [PHYSICAL INVENTORY] Import Physical Inventory Parts From File will need to be selected for the user(s) who will import barcode scans to a physical inventory count.

  1. Open the Parts & Service module.
  2. Choose the Parts Physical Inventory link from the menu on the left side of the screen. This option is under the parts maintenance tools.
  3. Choose an open physical inventory by double-clicking over it in the list, or start a new inventory count by choosing the Start New Physical button in the lower left.
  4. This will open the Physical Inventory screen. It will show the physical inventory you selected.
  5. Select the Import/Export button at the bottom of the window.


This will open the Physical Count Import/Export window.

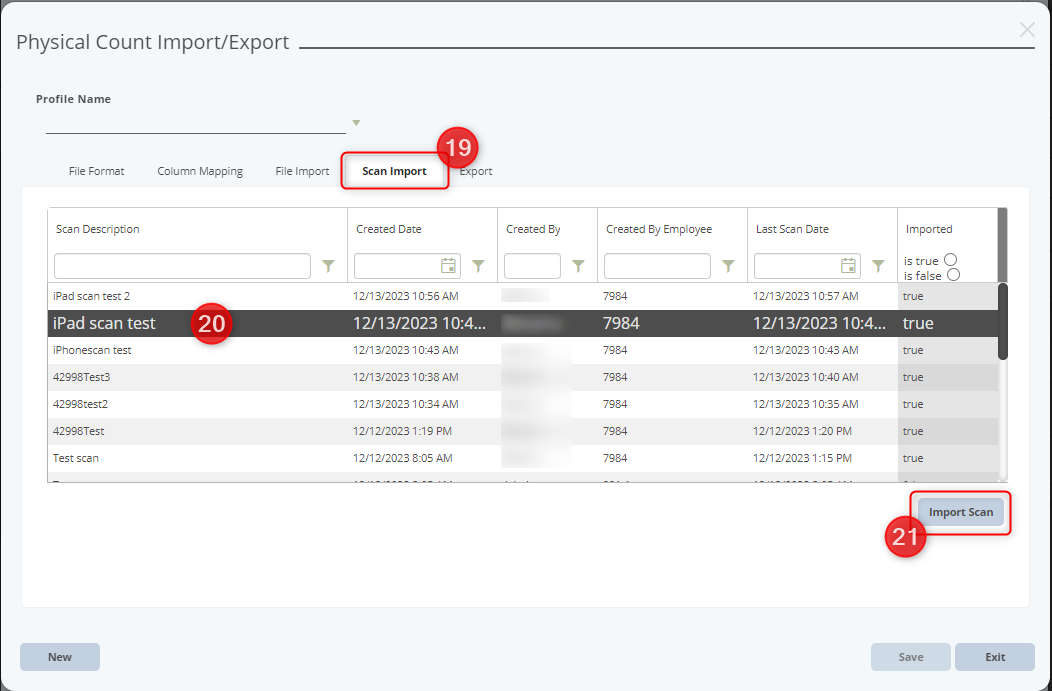

  1. Choose the Scan Import tab. This will show a list of your barcode scans.
  2. Click once over the row to select the scan that you want to import.


  1. Click the Import button. This will open a small popup confirmation that the scan has imported.
  2. Click OK on the popup confirmation to close. This will return you to the Physical Count Import/Export window.
  3. Select the Exit button. This will return you to the physical inventory screen. The parts that were imported will show.

You may follow the Physical Inventory process to complete the count.
